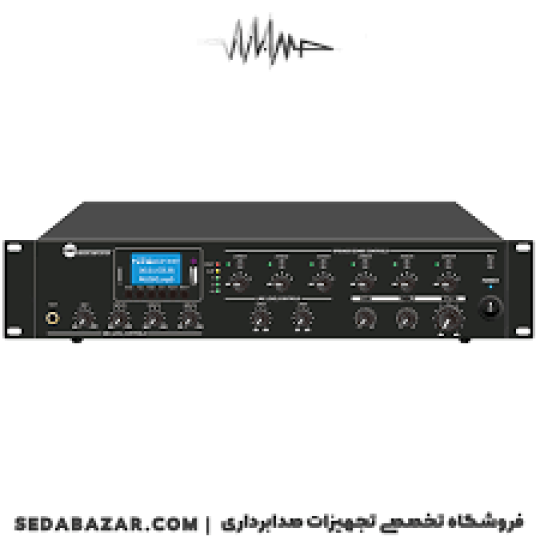

6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth DA-120MT

6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth DA-60MT/DA-120MT/DA-240MT/DA-350MT/DA-500MT

Features:

Public address (PA) 6 zone commercial mixer power amplifier
19” rack mount amplifier of 2U height
Rated outputs of 120W
6 zone speaker outputs of 100V
Single zone 100V/70V/4-16 Ohm speaker outputs
Six zone speaker outputs with independent volume control
Built-in media player with MP3/USB/FM tuner/Bluetooth
Mic1 input 6.3mm jack with VOX highest priority
Mic/Line input 2-4 balanced XLR with mic/line switch and +48V phantom power selector
Line 4-5 inputs on rear panel by RCA
EMC input by RCA on rear panel with secondary priority except MIC1
One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters
Volume control for Mic1-4 and line 1-2, bass/treble/master and 6 zone volume control on front panel
Visual indicators include AC and DC Power, protection, clip, 6 zone status and output level meters
Complete amplifier protection includes overload, clip, short circuit and high temp protection
230V AC and 24V DC operation system

Specification:

Model		DA-120MT
Description	6 Zone Mixer Amplifier with MP3/USB/FM tuner/Bluetooth
Rated Power Output		120W
Speaker Output	6 zone speaker outputs of 100V Single zone 100V/70V/4-16 Ohm speaker outputs
Input	Mic1-4: 2.5mV, Mic1 of 6.3mm jack, Mic/line 2-4 of balanced XLR Line1-2: 250mV, RCA EMC: 250mV , RCA
Frequency Response	80-16KHz
THD	<0.1%
S/N Ratio	>70dB
Protection	High temp, short circuit, clip & overload protection
Power Supply	230V AC & 24V DC, 50-60Hz
Power Consumption	1	200W
Dimension	484×405×88mm
Weight		9.2kg
