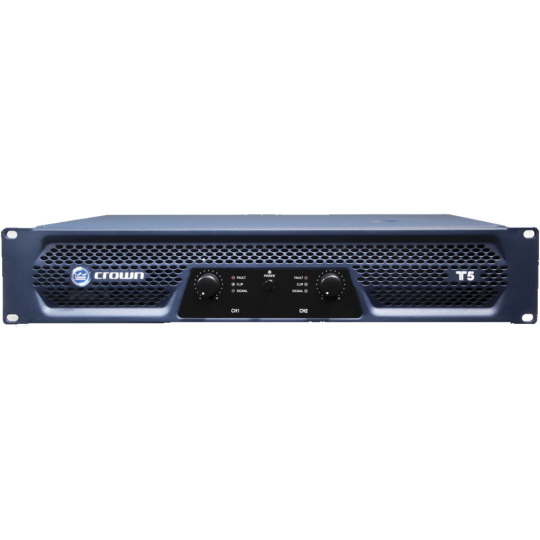

Crown T5

Frequency Response	20Hz - 20kHz, +0/-1dB
Total Harmonic Distortion (THD)	< 0.5%, 20 Hz - 20kHz
Intermodulation Distortion	= / < 0.35% (from full rated output to -30dB)
Conversion Rate	>10V/us
Voltage Gain	33dB
Damping Factor	> 200 (8Ω, 10 Hz - 400 Hz)
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)	> 100 dB
Crosstalk	-75dB at 1kHz, -59dB at 20kHz
Input Sensitivity	0.775V or 1.4V (rated power 8Ω)
Input Impedance	20kΩ Balanced, 10kΩ Unbalanced
Input Connectors	Balanced XLR and one unbalanced RCA per channel
Output Connectors	4-POLE Speakon® and a pair of binding posts per channel
Front Panel Components	Power switch, channel gain control
Rear Panel Components	Output mode switch: stereo, parallel, bridge, Input sensitivity switch: 0.775V or 1.4V
Power Indicator	Blue and green two-color LED
Signal Indicator	One green LED per channel
Clip Indicator	One yellow LED per channel
Fault Indicator	Red LED per channel , indicating that the channel is closed
Power cables	Plug : 10A, 250V, Wire : CCC 3x1.5mm 2
Protection	Protection against short circuit, no load, on / off noise, radio interference protection circuit
Ventilation	Air convection mechanism
Cooling	Internal air is forced to dissipate heat, fan cooling, rapid adjustment, temperature protection
Dimensions (w x h x d)	19” x 3.46” x 12.45” (482 mm x 88 mm x 316.4 mm)
Net Weight	29.7 lb (13.5 kg)
Shipping Weight	34.2 lb (15.5 kg)
