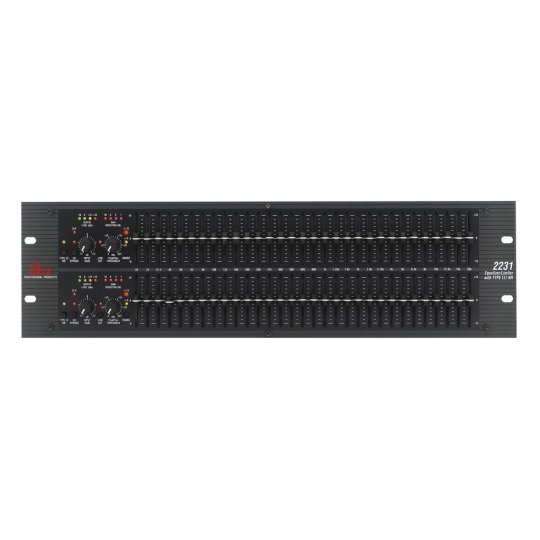

DBX 2231
-
17
-
20.500.000đ
|
Input Connectors |
1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip |
|
Input Type |
Electronically balanced/unbalanced, RF filtered |
|
Input Impedance |
Balanced 40 kOhm, unbalanced 20 kOhm |
|
Max Input |
>+21dBu balanced or unbalanced |
|
CMRR |
>40dB, typically >55dB at 1kHz |
|
Output Connectors |
1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip |
|
Output Type |
Impedance-balanced/unbalanced, RF filtered |
|
Output Impedance |
Balanced 200 ohm, unbalanced 100 ohm |
|
Max Output |
>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
|
Bandwidth |
20Hz to 20kHz, +/-0.5dB |
|
Frequency Response |
<10Hz to >50kHz, +0.5/-3dB |
|
Signal-to-Noise (NR In: +/-6 and +/-15dB ranges) |
>102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth |
|
Dynamic Range (NR In: +/-6dB and +/-15Db ranges) |
>120dB, unweighted |
|
Signal-to-Noise (NR Out: +/-6dB range) |
>94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth |
|
Dynamic Range (NR Out: +/-6dB range) |
>112dB, unweighted |
|
Signal-to-Noise (NR Out: +/-15dB range) |
>90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth |
|
Dynamic Range (NR Out: +/-15dB range) |
>108dB, unweighted |
|
THD+Noise |
<0.04%, 0.02% typical at +4dBu, 1kHz |
|
Interchannel Crosstalk |
<-80dB, 20Hz to 20kHz |
|
Noise Reduction |
Up to 20dB of dynamic broadband noise reduction |
|
NR Switch |
Activates dbx Type III Noise Reduction |
|
Bypass Switch |
Bypasses the graphic equalizer section in the signal path |
|
Low cut Switch |
(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter |
|
Range Switch |
(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range |
|
I/O Meter |
4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu |
|
Gain Reduction Meter |
4-LED bar graph (all Red) at 0, 3, 6, and 10dB |
|
Indicators |
NR Active (Yellow); EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) |
|
Operating Voltage |
100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz |
|
Power Consumption |
28W |
|
Power Connector |
IEC receptacle |
|
Dimensions |
5.25" H X 19" W X 7.9" D (13.335cm x 48.3cm x 20.1cm) |
